1-3/4" ‘Squish Pipe’ Headpipe Sets For 1966 - 1969 Rigid Shovelheads
Choose from two Shotgun sets, two Upsweep sets, or a 2-into-1 headpipe set with front inside-the-frame ‘squish’ pipes, for your early Shovelhead.

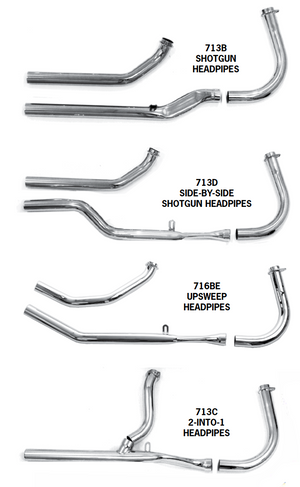

3-PIECE SHOTGUN HEADPIPES
For rigid frames with kickstart ONLY. Heat shields for the rear Shotgun pipes are recommended. Use Paughco #725D clamps to install.
713B Headpipes ONLY for use with extensions or mufflers
713D Side-by-side headpipes ONLY for use with extensions or mufflers
411BR Rear heat shield for Paughco #’s 713B and 713D pipe sets (not shown)
3-PIECE UPSWEEP HEADPIPES
For rigid frames ONLY. Heat shields for the rear pipes are recommended. Use Paughco #725D clamps to install.

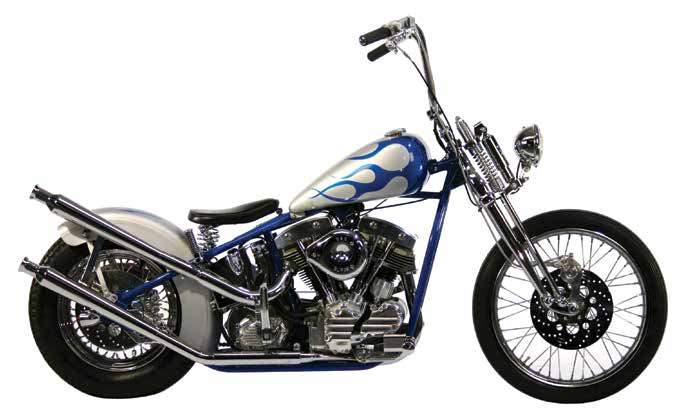

716B Headpipes ONLY for use with extensions or mufflers (fits kickstart only) shown below on bike
716BE Same as Paughco #716B except the rear pipe fits with an electric start wraparound oil tank
415BR Rear heat shield for Paughco #716B pipe set (shown below on bike)
3-PIECE 2-INTO-1 HEADPIPES
For 1966–1969 rigid and swingarm frames. Also fits 1970–up cone alternator engines in early frames. Use Paughco #725D clamps to install.
713C Headpipes ONLY for use with an extension or muffler
413CR Fits Paughco #713C rear pipe when installed on bikes with mechanical or hydraulic brakes (not shown)
Special
Notes
:1) Straight pipes are not recommended for use on the street
.2) See page
247 for
P-clamps and frame rail clamps to install these pipe sets
.3) See pages
349-353 for photos of the heat shields for these pipe sets
.
