Paughco Floating Front Fender Kit

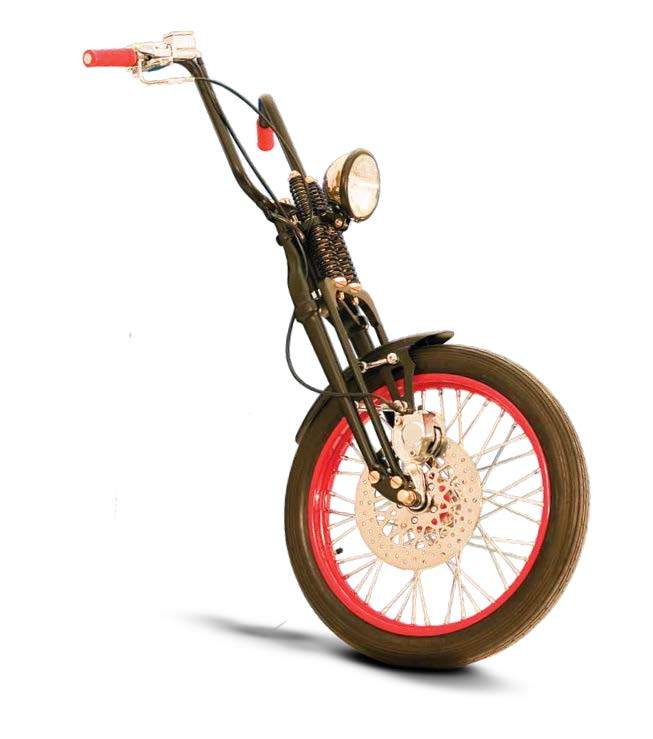

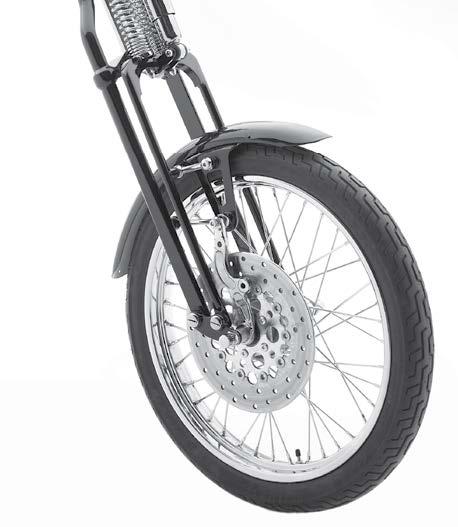

All Paughco Wide Springers can now be ordered (for an additional charge) with mounts on the front legs that will permit the installation of one of our floating front fender kits. The floating fender first appeared on Harley-Davidson FXSTS models with 21" front wheels in 1993. Unlike its predecessor that sat high above the wheel, the floating fender moves up and down with the wheel, maintaining a constant distance between the top of the tire and the bottom of the fender. This kit includes everything you need to install a floating fender on your Paughco Springer (except the fender and axle), provided that your Springer already has the mounts installed. We have two fender choices available... one is a perfect reproduction of a stock HD fender. The other is a custom version that has been shortened, and had the mounting bracket sculpted for a cool, custom look. The replacement parts can be used to replace their OEM counterparts (except #182 and #184AA).

182KIT Complete kit (does not include fender or axle)

135D Fender – raw steel (repl. OEM 59176-93)

135DS Custom shortened fender – raw steel

N186B1 Axle kit for Springers with tapered oval legs

186B1 Axle kit for Springers with half round rear legs

REPLACEMENT PARTS
All replacement parts are sold each.

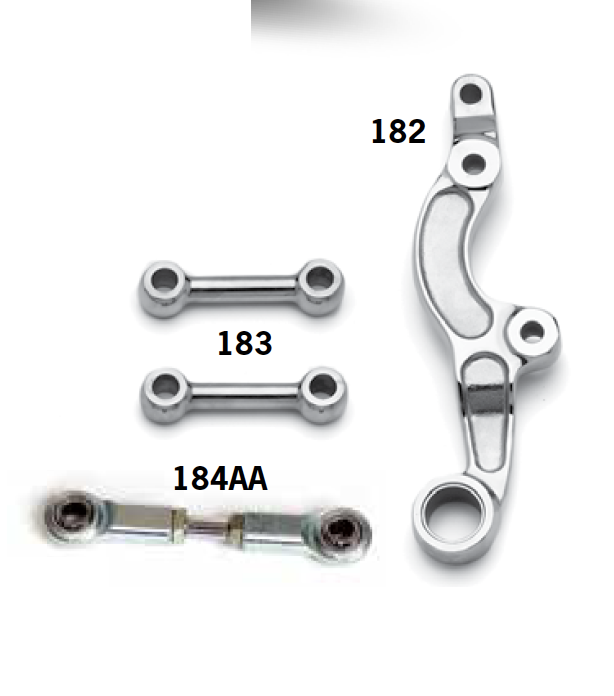

182 Chrome caliper bracket (not for H-D Springer)

184AA Reaction arm with bearings (not for H-D Springer)

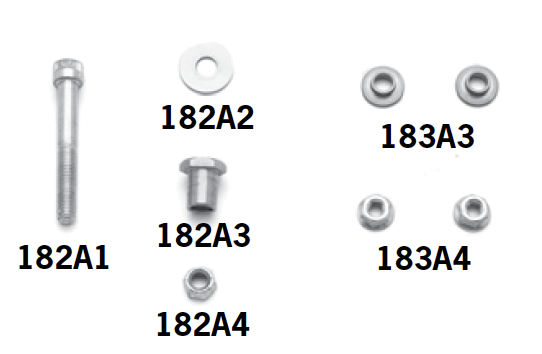

182A1 Sockethead screw (replaces OEM 4747)

182A2 Flat washer for #182A1 (replaces OEM 6371)

182A3 Shaft nut for #182A1 (replaces OEM 7588)

182A4 Locknut for #182A1 (replaces OEM 7667)

182A5 Cotter pin for #182A1 (replaces OEM 534)

183 Fender pivot link with bushings – 2 links required (replaces OEM 41042-93)

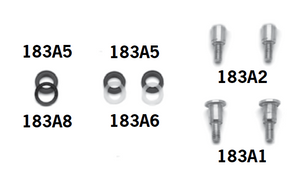

183A1 Shoulder bolt for #183 – 2 shoulder bolts required (replaces OEM 2723)

183A2 Pivot stud for #183 – 2 pivot studs required (replaces OEM 2738)



183A3 Shouldered fender spacer – 2 spacers required (replaces OEM 59043-93)

183A4 Locknut for #183A1 – 2 locknuts required (replaces OEM 7531)

183A5 Rubber spacer for #182A3 & #183A2 – 3 spacers required (replaces OEM 11244)

183A6 White nylon washer for #183 – 2 washers required (replaces OEM 6409)

183A8 Black nylon washer for #182A3 (replaces OEM 6498)
