1-3/4" Panhead Over The Transmission Exhaust Systems For 1948-1964
An outside-the-frame front pipe, and a rear pipe that routes over the transmission, bring a modern style and a throaty sound to your 1948–1964 Panhead. These systems will fit rigid or swingarm frames, but will not fit with large FLH battery. They all have slider channels.

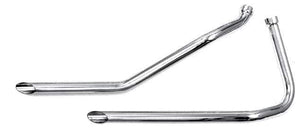

721C40 40"-long Slash Cut drag pipes

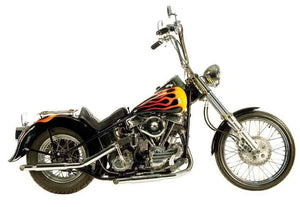

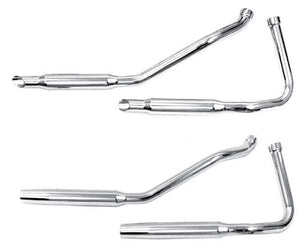

721CGM 38"-long Goose Cut muffler set (shown on bike)
721CM 38"-long Slash Cut muffler set
721CTM 38"-long Tapered muffler set
421CR Rear heat shield for Paughco #721C series pipe sets (shown on bike)
Special
Notes
:1) Drag pipes are not recommended for use on the street
.2) These pipes have less ground clearance than original equipment and may scrape on hard right hand turns
. Do not use these pipes unless the front end is extended at least
4" longer than stock or serious injury may result
.3) See page
247 for
P-clamps and frame rail clamps to install these pipe sets
.4) See pages
349-353 for photos of the heat shields for these pipe sets
.
