3.5-quart chrome oil tanks for 1965–1986 FL and FX 4-speed models, that provide easy access to the battery, and bolt to the stock mounts. They also fit Paughco stock-style frames. Each tank includes a two-piece front bracket for easy installation, and measures 5-9/16"-tall x 7-1/2"-deep x 12"-wide. The battery compartment is 73/8" wide x 4-1/8"-deep.

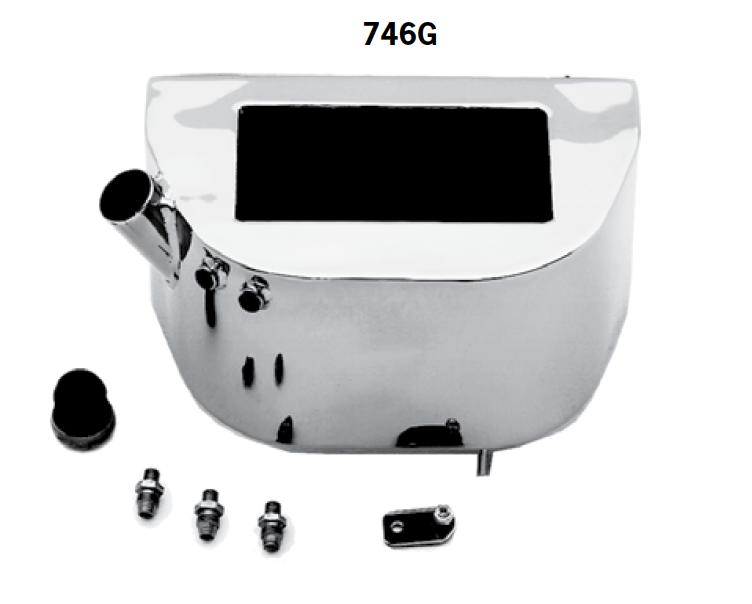

746G With 3 threaded oil line fittings

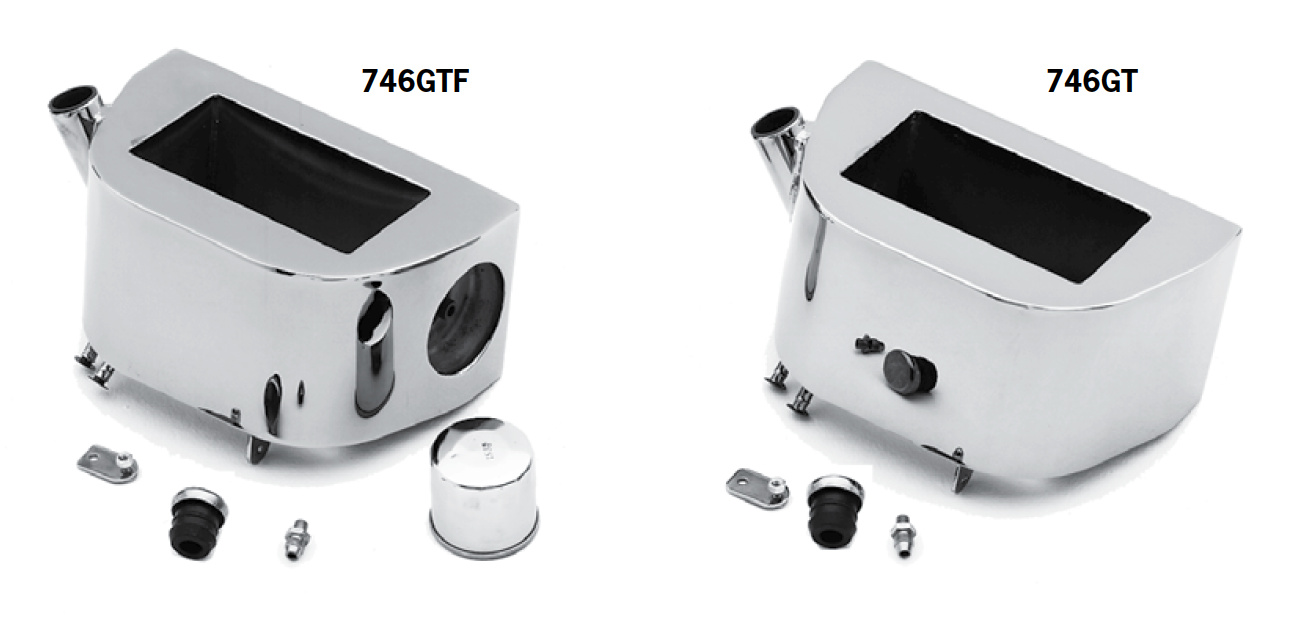

746GT With ‘push-on’ hose barbs for vent and return lines
746GTF With oil filter and ‘push-on’ hose barbs for vent and return lines
Note: Tanks are built to order items with a ship time of 3 - 6 weeks. CHROMED products (oil tanks) may vary or require longer ship times due to our in house chroming process.
Special Notes:1) U
se a P
aughco #748H
oil filter (OE M 63782-80) on all oil tanks with filters
.2) Paughco
746G-Series oil tanks come with fill er cap
, oil line fittings and seat post bracket as shown
.3) Use a
Paughco
#800E drain plug
(sold separately
) on all
Paughco
746G-Series oil tanks
.
