These tanks use the small kickstart Sportster battery, and fit rigid frames and 1958–1964 swingarm frames with aluminum primaries or 1979–up 4-speed transmissions with steel primaries. Uses a Paughco #800E drain plug (sold separately). Measures 5-5/8"-tall x 8-5/8"-deep x 10"-wide. Battery plate is welded in place, and the compartment measures 5-3/8"-wide x 5-3/8"- deep.

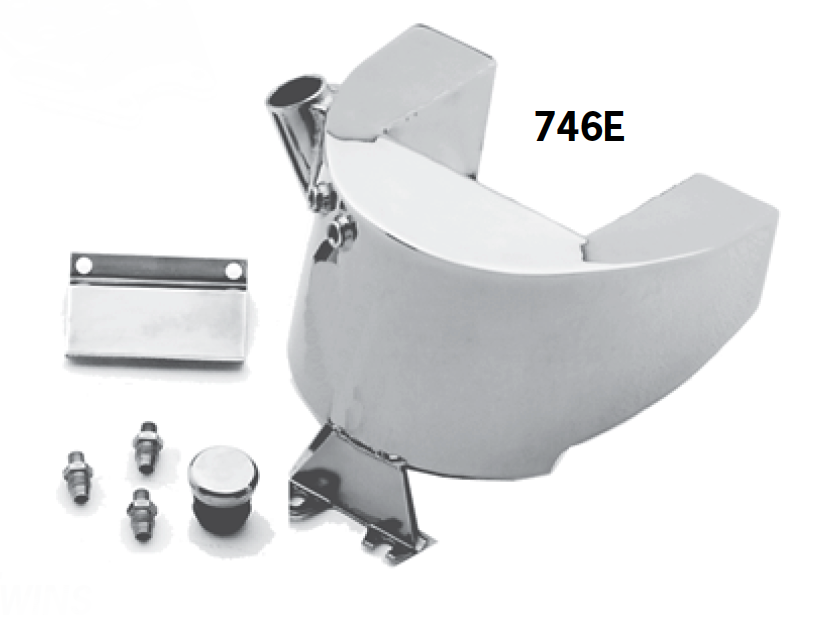

746E Side fill tank with 3 threaded oil line fittings

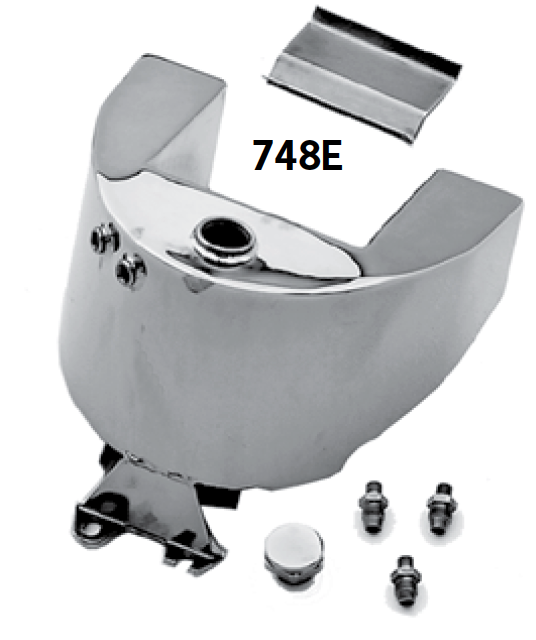

748E Top fill tank with 3 threaded oil line fittings
Note: Tanks are built to order items with a ship time of 3 - 6 weeks. CHROMED products (oil tanks) may vary or require longer ship times due to our in house chroming process.
Special Notes:1) Use
Paughco
#748H oil
filter (OE M 63782-80) on all tanks with filters
.2) Oil tanks come with fill er cap
, oil line fittings and battery plate as shown
.
