1-3/4" Over The Transmission Exhaust Systems For 1971 - 1984 Swingarm FX Model Shovelheads
Kickstart ONLY. Will not work with the FXE battery. A heat shield for the rear pipe is highly recommended.
730 34"-long Slash Cut drag pipes (use Paughco #725D clamps to install)
730A 34"-long Goose Cut drag pipes (use Paughco #725D clamps to install)

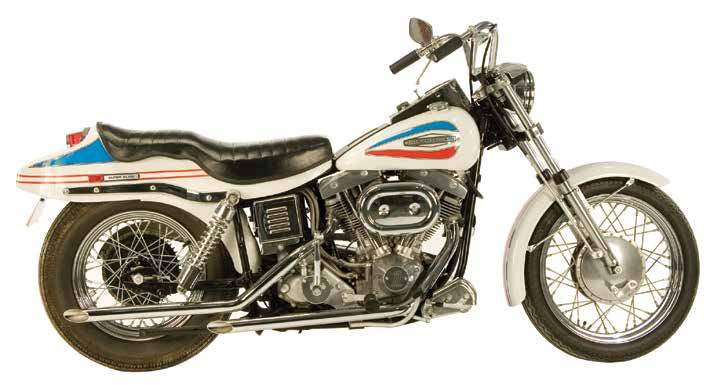

730-40 40"-long Slash Cut drag pipes with slider channels (use Paughco #725D clamps to install) shown below on bike_
730MEG 38"-long Megaphone muffler set with slider channels
424CR Rear heat shield for Paughco #730 series pipe sets (not shown)
430F Front heat shield for Paughco #730 series pipe sets (not shown)
2-INTO-1 HEADPIPE SET
Designed after the Original Equipment factory header fitted to many 70’s kickstart FX models. Accepts most of the popular Paughco slip-on mufflers. Requires 5/16"-18 sockethead screws for installation instead of the regular exhaust studs.
733CK One-piece headpipe set
Special
Notes
:1) Drag pipes are not recommended for use on the street
.2) See page
247 for
P-clamps and frame rail clamps to install these pipe sets
.3) See pages
349-353 for photos of the heat shields for these pipe sets
.
