Fork Stems, Clamps And Cap Nuts For Big Twins And Sportsters

A nice selection of these critical components for use in new installations or as replacement parts. Sold each.

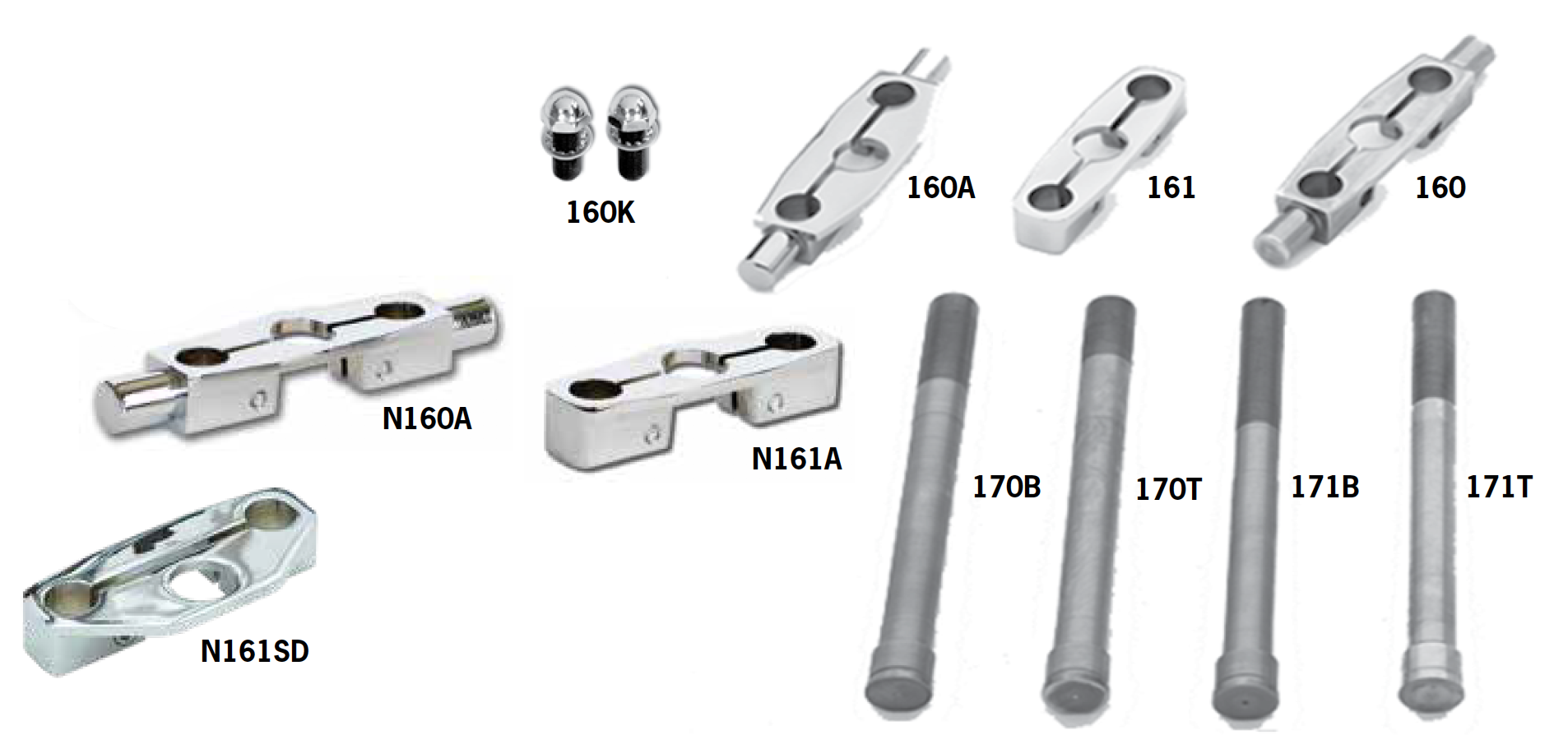

REPLACEMENT TOP CLAMPS
The distance between the riser stud holes on the top clamps is 4.".

161 0° in-line top clamp for all Paughco Springers (except N181SD and NS181SD series Springers) that measure less than 15" over stock length

161WT Same as Paughco #161 top clamp but with built-in mounting holes to permit the installation of Paughco T-bars or Paughco risers that require 1/2"-20 mounting bolts (holes are on standard 31/2" centers)

N161A 3° in-line top clamp for all Paughco Springers (except N181SD and NS181SD series Springers) that measure 15" over stock length or greater

N161SD Offset top clamp for N181SD and NS181SD series Springers

160 0° Dog Bone in-line top clamp for all Paughco Springers (except N181SD and NS181SD series Springers) that measure less than 15" over stock length

N160A 3° Dog Bone in-line top clamp for all Paughco Springers (except N181SD and NS181SD series Springers) that measure 15" over stock length or greater

160A 0° Dog Bone offset top clamp for early stock Harley-Davidson Springers ONLY

160K Kit for covering riser stud holes when using Dog Bone risers


NECK STEMS

170B For Big Twins with ball bearing necks (10."-long x 1"-diameter)

170T For Big Twins with Timken bearing necks (10."-long x 1"-diameter)

171B For Sportster and 45" models with ball bearing necks (103/8"-long x 7/8" diameter)

171T For Sportster and 45" models with Timken bearing necks (103/8"-long x 7/8"-diameter)

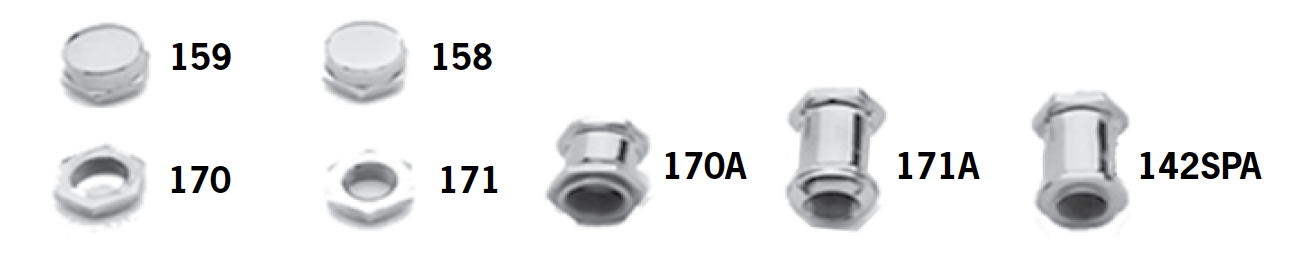

CAP NUTS AND CROWN NUTS

159 Cap-style top nut for Springers and Wide Glides with 1"-diameter necks

158 Cap-style top nut for Sportsters and stock 45" Springers with 7/8" diameter necks

170 74" OEM-style top nut for Springers

171 Sportster top nut for Springers

170A 74" OEM-style crown nut for Springers

170ASD Replacement crown nut for Paughco Springers for Sportsters and Dyna Glides (similar in appearance to Paughco #170A)

171A Sportster crown nut for Springers with 7/8"-diameter ball bearing neck stems (23/8"-long x 1ó"-diameter)

142SPA Sportster crown nut for Paughco Springer fork cup kit with 7/8"-diameter Timken neck stem (2ó"-long x 1ó"-diameter)
