Standard And Stretched Paughco Coffin Tanks

These universal tanks are designed to fit on modern customs with longer stretches in the top tubes, and are constructed with vents and screw-in fillers. Each tank has a bung with internal threads for a standard 3/8" NPT aftermarket or HD petcock installed on the left-side, and includes a mounting kit. All tanks come with a bare metal finish, and have been pressure tested.

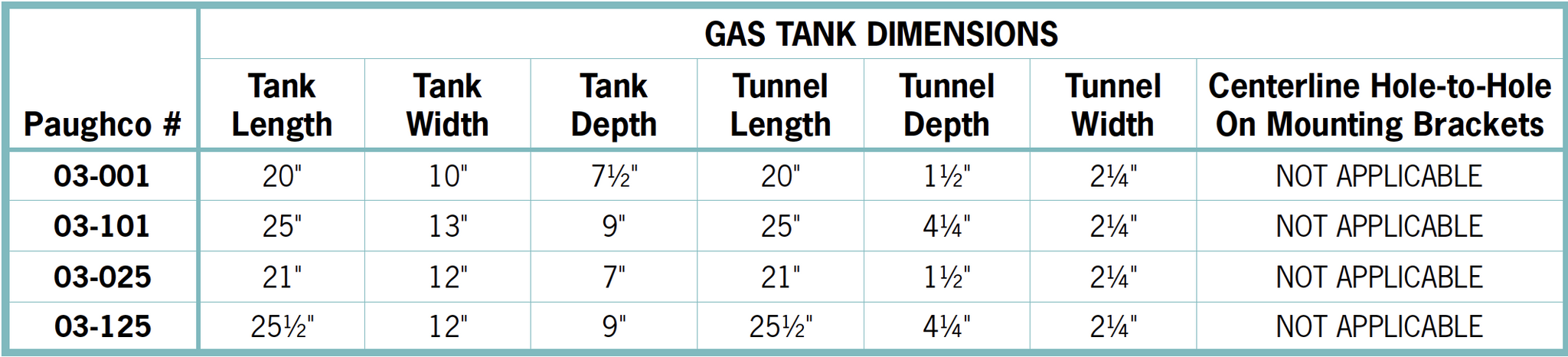

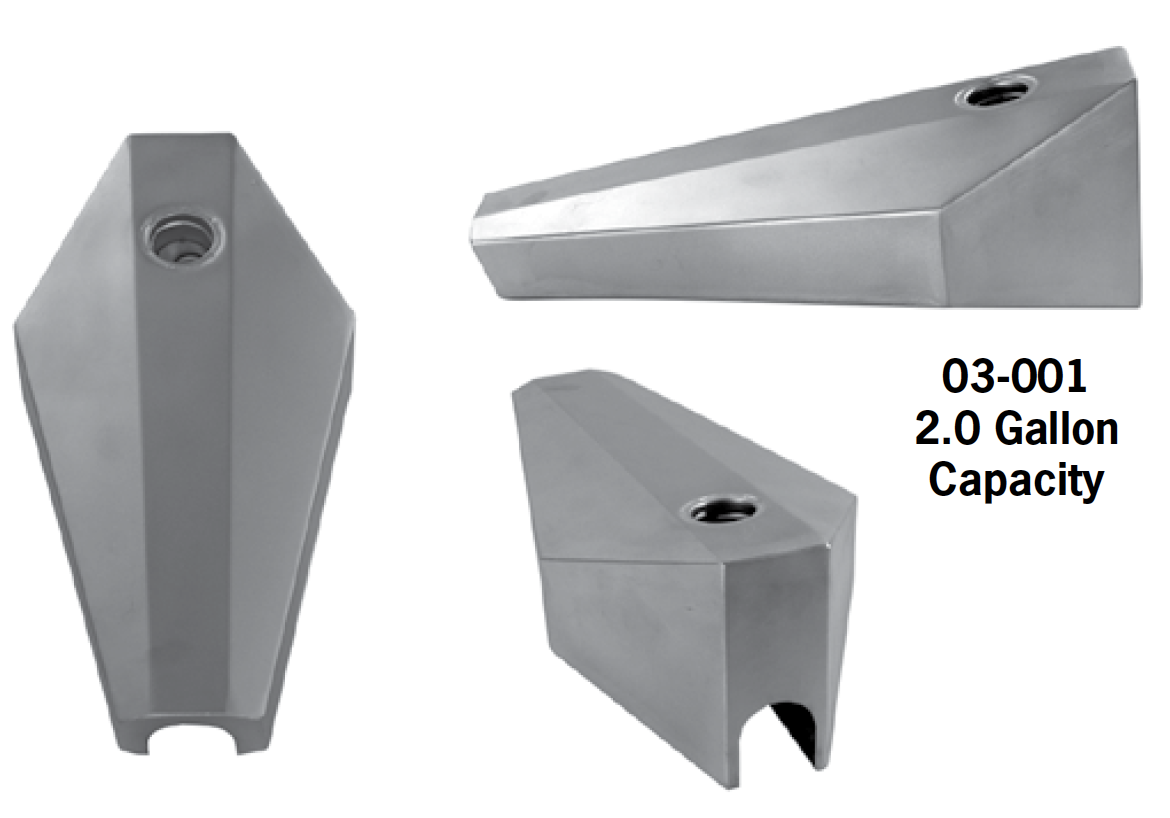

03-001 2.0 gallon low-tunnel gas tank (cap not included)

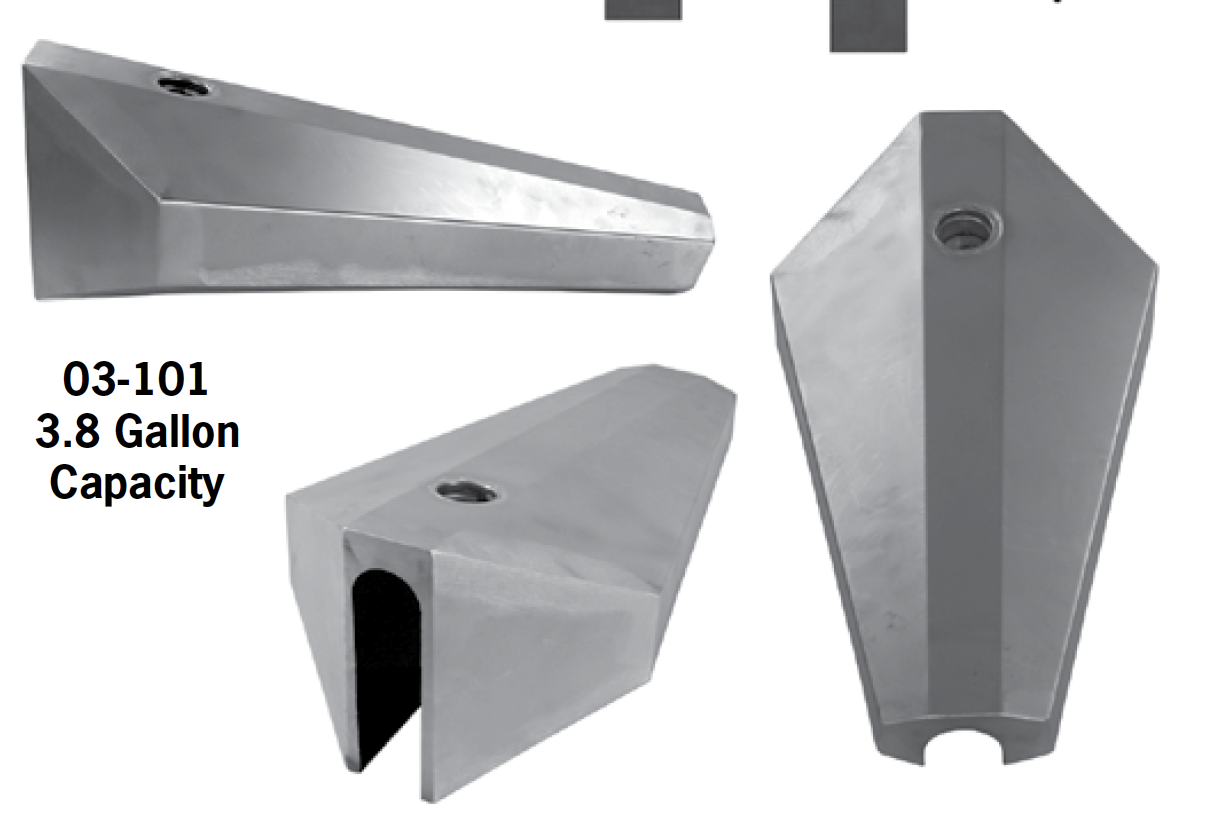

03-101 3.8 gallon high-tunnel gas tank (cap not included)

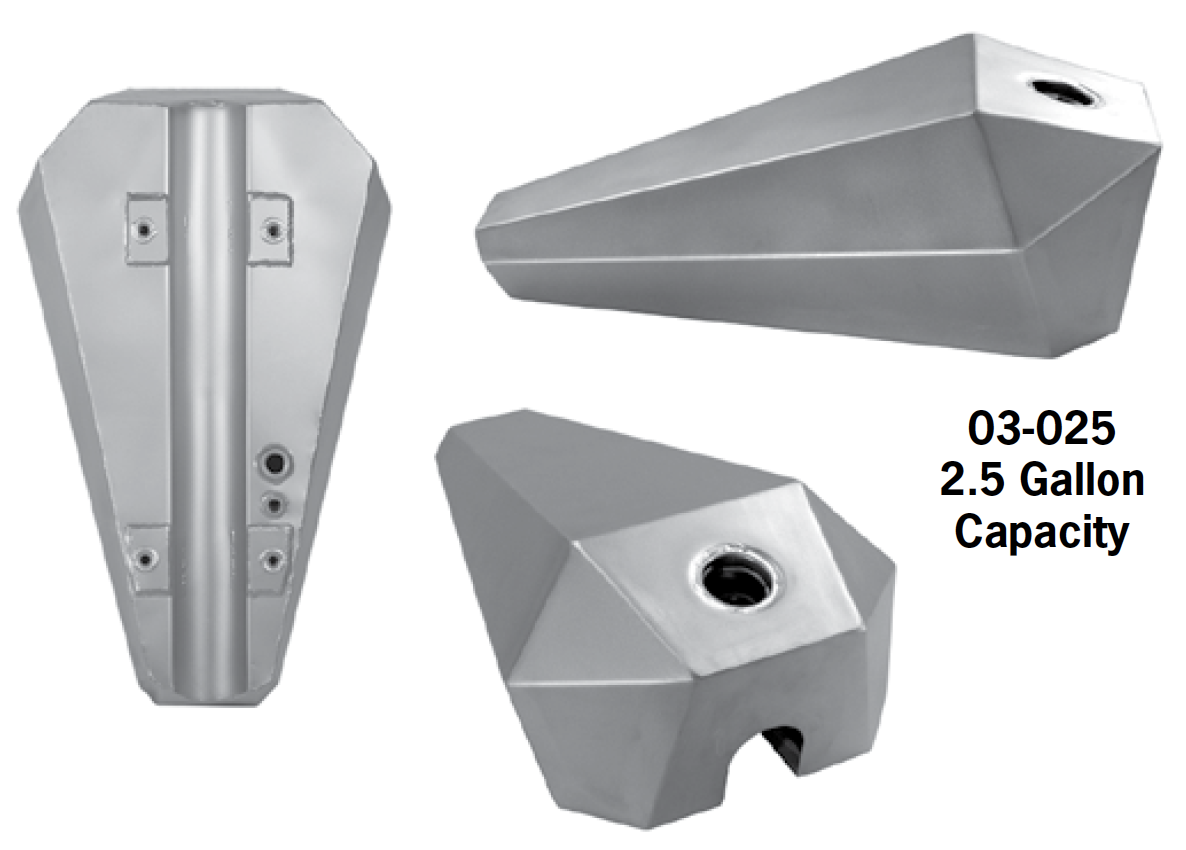

03-025 2.5 gallon low-tunnel gas tank (cap not included)

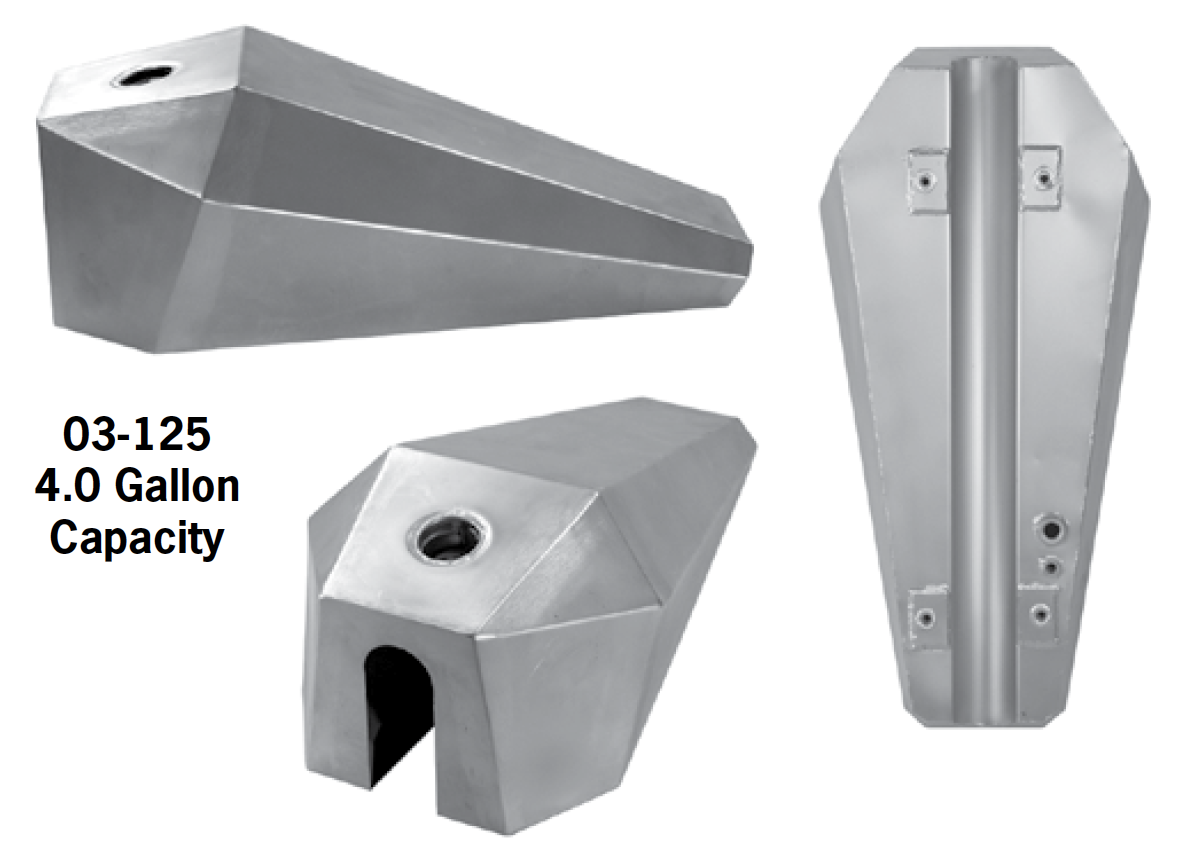

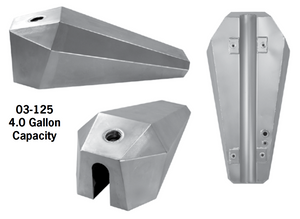

03-125 4.0 gallon high-tunnel gas tank (cap not included)

800S Chrome screw-in vented gas cap (OEM 61102-83A)
Click here for gas caps and petcocks

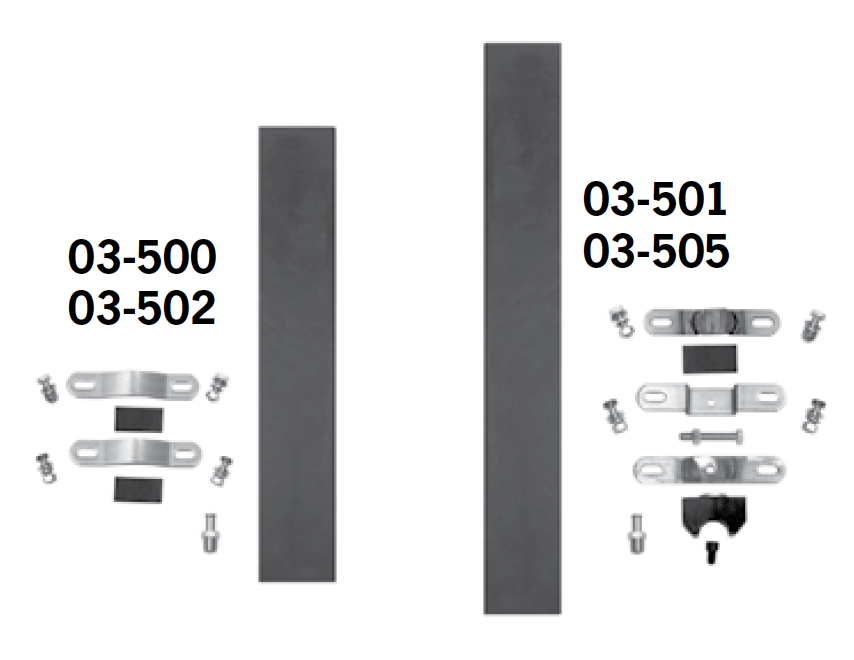

REPLACEMENT MOUNTING KITS

03-500 Fits Paughco #03-001 low-tunnel tank

03-501 Fits Paughco #03-101 high-tunnel tank

03-502 Fits Paughco #03-025 low-tunnel tank

03-505 Fits Paughco #03-125 high-tunnel tank

Universal tanks designed to fit on modern customs with longer
stretches in the top tubes, and constructed with vents and screw-in
fillers. Each tank has a petcock bung with internal threads on the leftside.
All tanks come with a bare metal finish, and have been pressure
tested. Mounting kits are included.

TANKS WITH 1/4" NPT BUNG FOR AFTERMARKET PETCOCKS

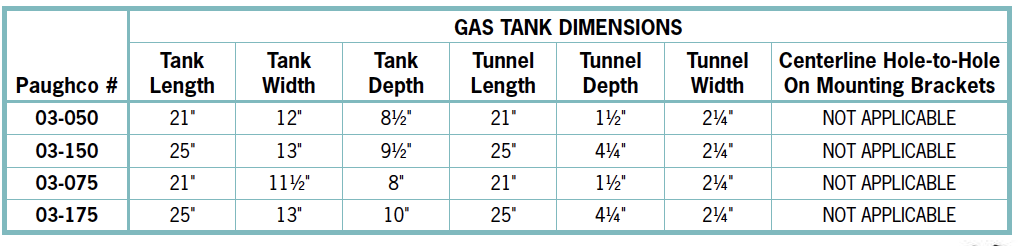

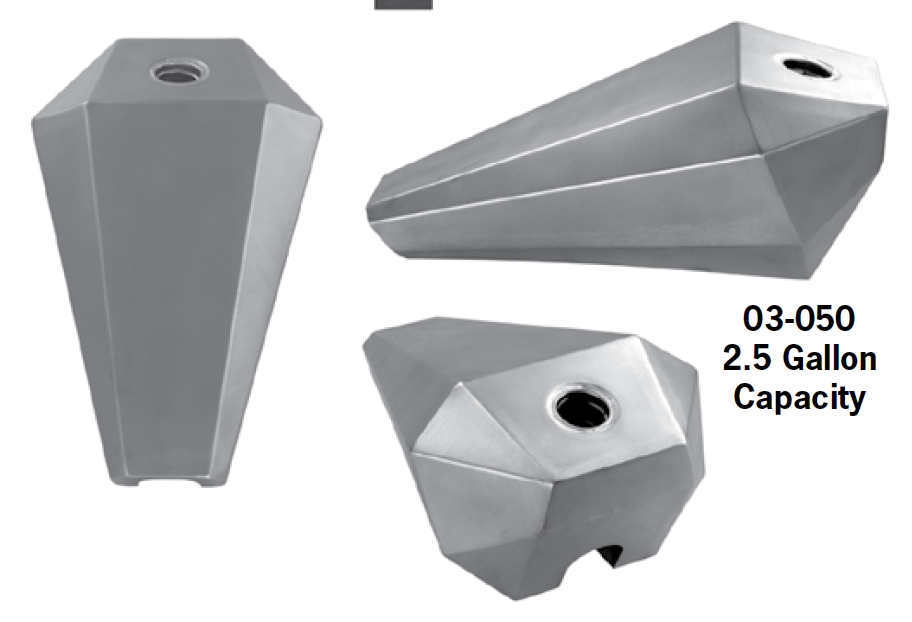

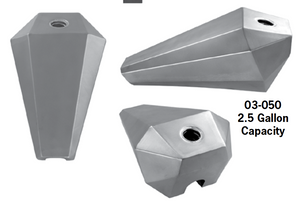

03-050 2.5 gallon low-tunnel gas tank (cap not included)

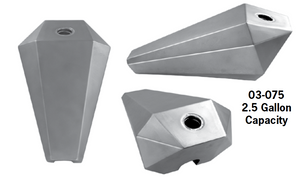

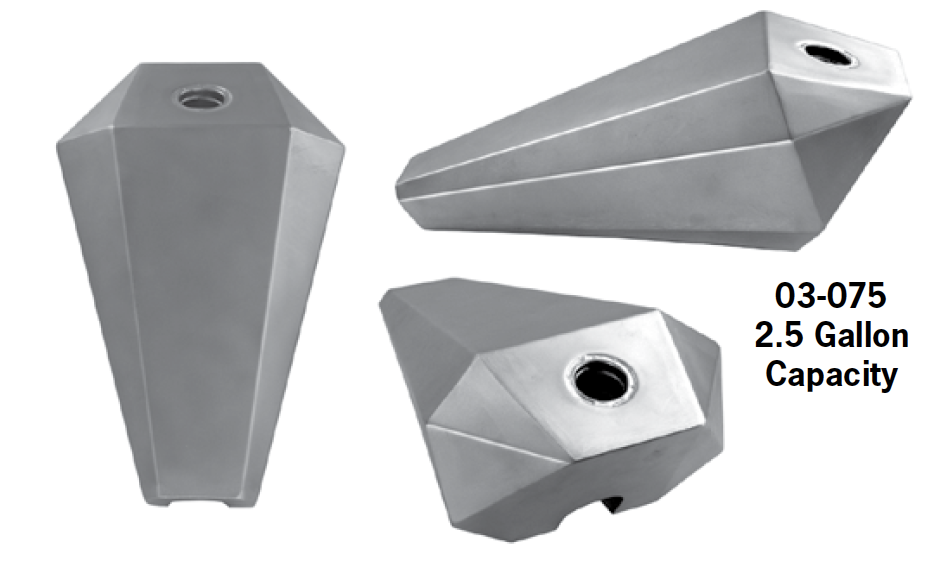

03-075 2.5 gallon low-tunnel gas tank (cap not included)

TANKS WITH 3/8" NPT BUNG FOR HD OR AFTERMARKET PETCOCKS

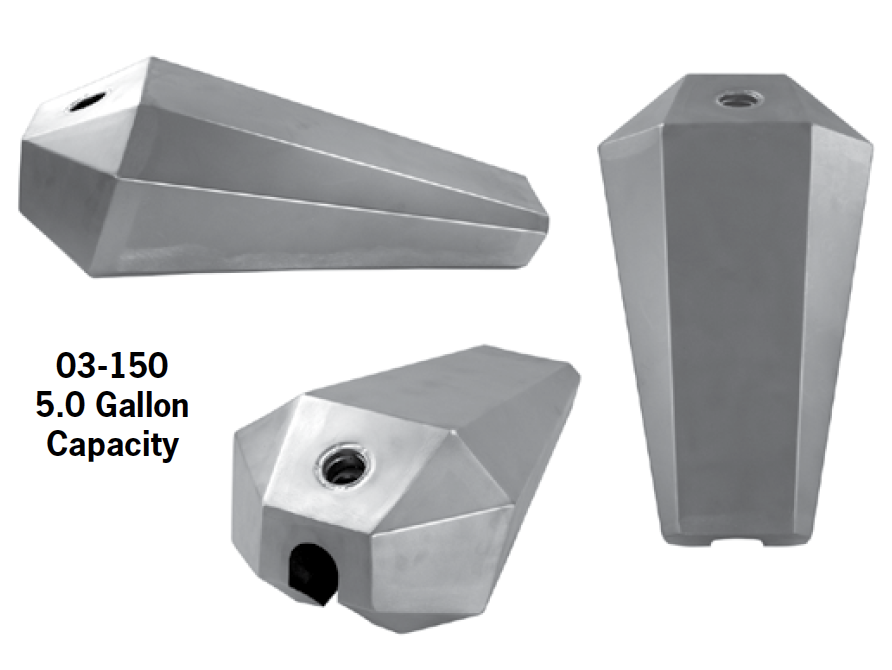

03-150 5.0 gallon high-tunnel gas tank (cap not included)

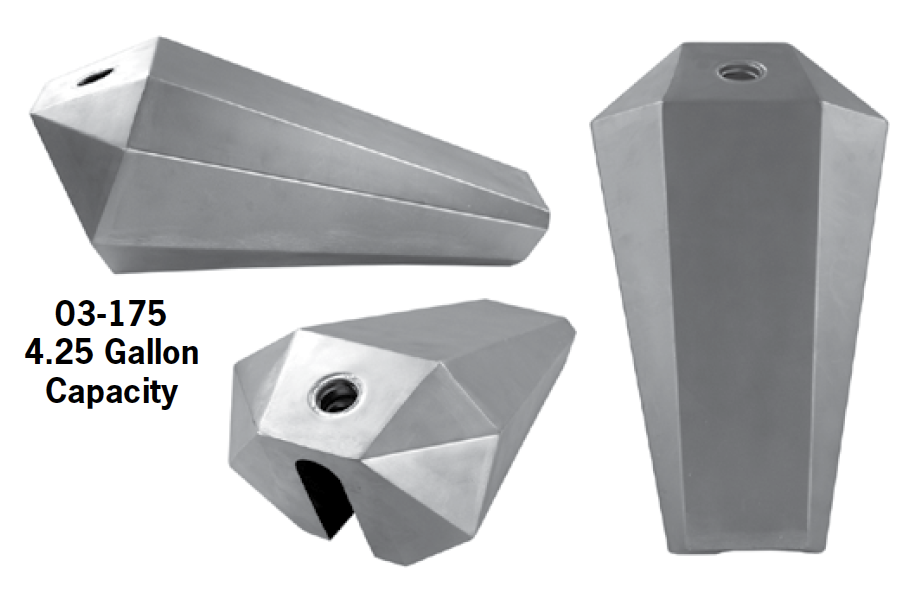

03-175 4.25 gallon high-tunnel gas tank (cap not included)

REPLACEMENT MOUNTING KITS

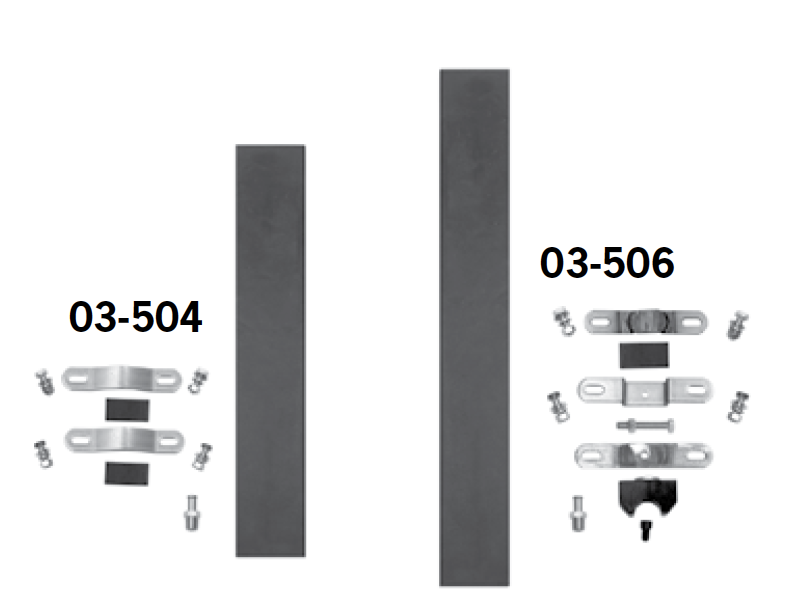

03-504 Fits Paughco #’s 03-050 and 03-075

03-506 Fits Paughco #’s 03-150 and 03-175

Special Note:
Always fit before paintingPaughco will not warranty after painting
